Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Model Number: 158N
  • Power Type: Electricity
  • Type: Robotic Mowers
  • Feature: Anti-Slip, Antistall, Cordless, Height Adjustable Handles, Self Propelled, subarea setting
  • Certification: CE, EMC, ROHS
  • Forward Speed: 20m/min
  • Cutting Width: 28cm
  • color: white/green/blue
  • working time: 2-3 hours
  • rated power: 82W
  • battery: lithium / lead-acid
  • Wifi: Yes
  • Water-proofed-charger: Yes
  • Auto Recharged: Yes
  • Remote Control: Yes
  • Subarea function: Yes
  • range function: Yes

Packaging & Delivery

Packaging Details 81*56.5*34cm G.W:21KGS N.W:18KGS (LE) G.W:18KGS N.W:15KGS(LI)
Delivery Time 3-5days







 WIFI App Demo: http://youtu.be/3PUABpRCVVU









Robot Lawn Mower 158N is the update version for classic mower 158, on the basis of 158,with the more functions  of  password,Schedule,Language selection  and subarea setting.

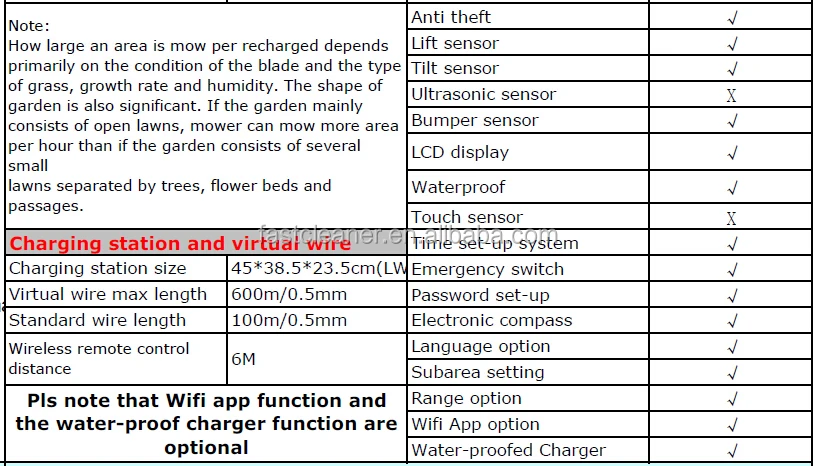

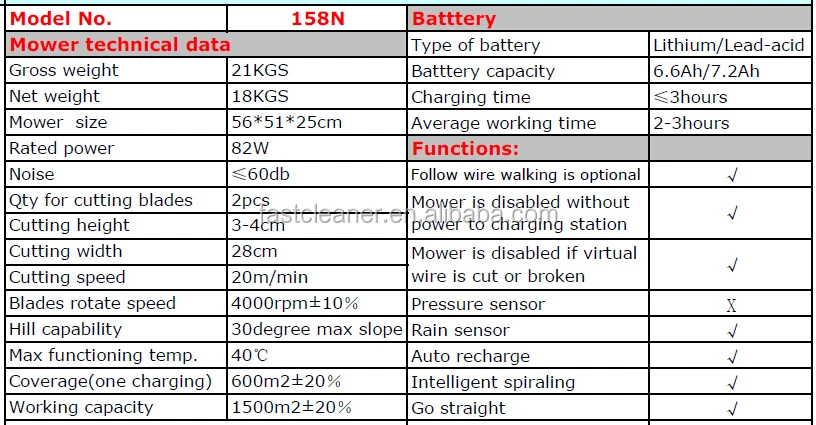

Technical Data



Newest arrival Robot Grass Cutter  With NEWEST APP Controlled Wireless WIFI +Water-Proof Charger





Robot lawn mower 158N is our newest robots in 2015,and hot sell in 2015. It have more newest advanced function and pretty price. The biggest bright spot of this product is that it has a subarea setting. This function can sparate a big lawn into 3 small area to cutting, so it can save more time to cut a big lawn.





Two Cutting modes:

There are two cutting modes of the mower: go straight and go circle

In Auto mode, mower selects cutting mode intelligently.

In Manual mode, the mower will just go were you direct it.



It goes straight if the grass is sparse or it has be cut off, and it goes circle if the grass is dense or lond. (This is more high efficiency for mower to cutting lawn)





How to adjust the cutting height:

There are two cutting levels of this mower,3cm or 4cm.

The user has to change the blades to adjust the cutting height.



1.Stop the mower and take off the key

2.Loose the screws on the blade holder

3.Adjust the cutting height by change the two blades

4.Fix the blades to the holder with screws







Some function of TC-158N :



1.Lift sensor



There are lift sensors located on the front wheels. If the mower is lifted from ground, it will stops working within 1 second.



2.Tilt sensor



There are tilt sensor installed on the mower too,when the mower is tilted over 30 degrees in any direction,it stops working within 2 seconds.



3.Bump sensor



There are bump sensor equipped at the front of mower, they will activate when the mower strikes soild,fixed, object when that object is at least 6cm in vertical height from the supporing surface of the mower. when the bump sensor activated, the mower will stop movement in that direction and reveres itself away from the obstacle.



4.Rain sensor



There are two rain sensor located on the top cover.The mower will go back to the charging station automatically when it's raining.



5.Auto recharge system



when the mower senses a low battery situation,it will shut off the cutting motors and search for virtual wire. Once found it will follow the virtual wire to the charging station for recharge automatically.Once charging is complete, the mower will back up a few centimeters ready to again in stand by mode



6.Overload protect



Each of the cutting motors the two running motors are monitored continuously during operation for any situation that may cause these motors to over-load in the event this is detected,the mower stops operating.



7. Easy cutting height adjustments



Two levels of cutting blades, one levels is 3cm,another is 4cm.change blades to adjust the cutting height



8.Mowing schedule



Set up one week(From Monday to Sunday,Once for each day)Cutting schedule from the control panel



9.Subarea setting



This function can sparate a big lawn into 3 small area to cutting, so it can save more time to cut a big lawn.



Four steps to safety start the mower:



1. Connect charging station with power supply by charger.



2. Connect virtual wire to charging station and make sure it is in good connecting.



3.Turn on the power button and release the emergency switch.



4.Input password if selected and select mode.



WIFI APP MANUAL:
