Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: OEM
  • Model Number: E1600
  • Power Type: Electricity
  • Type: Robotic Mowers
  • Feature: Aluminum Chasis, Anti-Slip, Height Adjustable Handles
  • Certification: CE, EMC, ROHS
  • Forward Speed: 35m/min
  • Cutting Width: 28cm
  • Gyroscope: Yes
  • Battery: 2pcs Li-ion 13.2AH
  • Working capacity: 3600+-20%
  • Motor: Brushless motor
  • Working time: 5-6hours
  • Charging time: 5hours
  • Robot: Auto Mower
  • Have: WIFI
  • Do: time set

Packaging & Delivery

Packaging Details carton:80.5*52*30cm(L*W*H)
G.W.:21KGS
N.W.:18KGS
20ft container:168sets
Delivery Time 3-30days



                        Sample order link: ( Support Credit card payment )

                             please click the following button to buy sample



                                                                Demo: https://youtu.be/XbYFbff98OY

                                 WIFI App Demo: http://youtu.be/3PUABpRCVVU





 Newest and Best 5th Gerneration Auto Mower E1600 Updated with NEWEST GYROSCOPE Function





Rain Cover:




 Installation:

Subarea Settting:You can Select Subareas For The Mower To Cut.This Works Well For Larger Lawn.

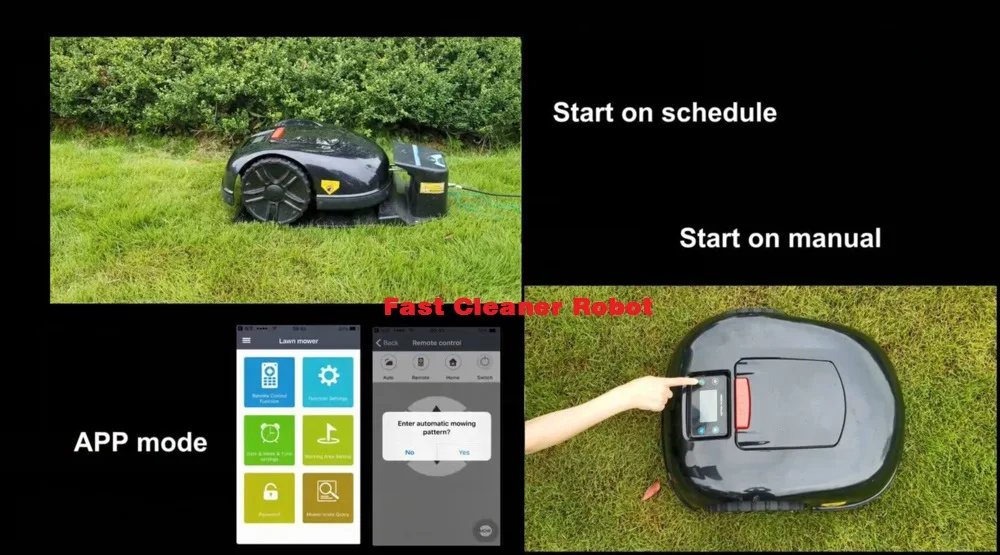

You can start the robot mower by Manual or start on Schedule:

Before Moving and After Moving(Compare)
Newest !!! Robot lawn mower E1600/Robot Grass Cutter is our 5th generation robot lawn mower and latest robot lawn mower came out in last month.




The improvement of E1600 ,which is better than other models:



1:Only with one front wheel, mower can running in both directions, do not have to turn  when meet the wire  like old models, increase the cutting efficiency, and also solve the problem of slippery on wet lawn, especially the wire is set near the small hill.



2: Use the gyroscope instead of compass It is not easy to interuppted by electric/metal/other signal,etc.



Better for running straight,and not easy to change the direction when running on slopes.

And increase the cutting efficiency for different areas with lower or higher level.



3:Add one fuse and one button battery on Main PCB Fuse:to Protect the Main PCB from short-circuited.

Button battery:Save all settings if need to change the battery, to avoid resetting after replacement.



4:Use magnet on clamshell,easy to open and close.



5:Separate the wire sensor board from Main PCB,each wire board at front and back.



6:Imbed the wifi board on the Main PCB.



Robot Lawn Mower E1600 Functions:


Warranty:24 Months



1.Lift sensor

 If the mower is lifted from Ground,it will stops working within 1 secondif the mower is lifted from Ground,it will stops working within 1 second


2.Tilt sensor

 When the Mower is tiled over 30 degrees in any direction,it will stop working within 2 seconds
3.range function

 There are four options for the ranges, user can choose thedistance when the robot hit the virtual wire according the

condition of different lawns.


4.Bump sensor

 It will activate when the mower strikes solid,fixed object when that object is at least 6cm in vertical height from the supporting surface of the mower,when the bump sensor activated,the mower will back up  for working.

5.Rain sensor

There Are Two Rain Sensors loctated on the mower,the mower will go back to the charing sation automaticly when rainin



6.WIFI remote control(IOS And Andriod System)
7.Mowing schedule (in any time)
8.Anti-theft (Password for protecting)

9.Cutting height easy adjustable (2.5-5.5cm)
10.Auto recharge
11.Emergency stop switch
12.Pressure sensor
13.Overload protect
14.Waterproof
15.LCD display
16.Subarea setting
17. 12 Different languages selection
 English,French,German,Danish,Swedish,Finnish,Italian,Norwegian,Spanish,Dutch,Russian,Polish.and we could add more...

18.Virtual wire (the longest can be 600m,standard packing was 100m)







 Technical information about E1600:

    What is the packing box:

1pc Robot Lawn Mower
100m virutal wire
100pcs pegs
4pcs blades
4pcs stakes
1pc charger
10pcs wire connector
1pc inner hexagon spanner
1pc English manual



Production line:



Container Loading:

We welcome any quantity order:

For more infomation ,please feel free to contact with us and all your question will be replied within 12hours. thanks
